MC4-Evo 2 Flexible Y Connector (PV-K/SPL-Y)
Art.No.: 4004mmf
No ratings.
Manufacturer:
Low stock - order quickly !

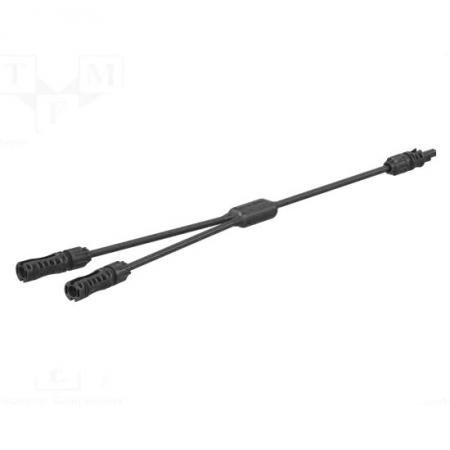

MC4-Evo 2 Flexible Y Connector (PV-K/SPL-Y)
The MC4-Evo 2 flexible Y connector benefits from TÜV Rheinland certification and guarantees a stable and durable connection within a PV DC chain.
Minimal power loss, low heat generation, robust housing, protection class IP68, cable cross section 6 mm².
| Technical data | |
|---|---|
| Connection system | MC4-Evo 2 |
| Rated voltage | DC 1500V |
| Test voltage | 8kV |
| Protection class | II |
| Overvoltage Category Degree of pollution |
CATIII/3 |
| Connectors (only Stäubli brand connectors should be used) |
MC4 fitting and recessed socket MC4-Evo 2 flush-mounted connection and socket |
| Ambient temperature range | -40°C to +85°C |
| Temperature range for transport/storage | -30°C to +60°C |
| Relative humidity for transport/storage | < 70 % |
| Degree of protection (IP), connected/disconnected |
IP65 / IP68 IP2X |
| Insulating material | PA, EVA, XLPE |
| Contact material | Copper, tinned |
| Max contact resistance of the connector | < 0,5 mΩ |
| TÜV Rheinland certification according to 2PfG 1913 | R 60164319 |
| Reference | Kind | Connections | Entrance | Exit |
|---|---|---|---|---|
| 32.0333 | PV-K/SPL-Y-8-15/15-15EPP/ES-0050 | MC4-Evo 2 | Brooch (2x) | Socket (1x) |
| 32.0334 | PV-K/SPL-Y-8-15/15-15ESS/EP-0050 | MC4-Evo 2 | Socket (2x) | Brooch (1x) |
