Stäubli MC4-Evo stor female panel receptacle 4 to 6 mm² PV-ADB4-EVO ST/6

Stäubli MC4-Evo stor female panel receptacle 4 to 6 mm² PV-ADB4-EVO ST/6

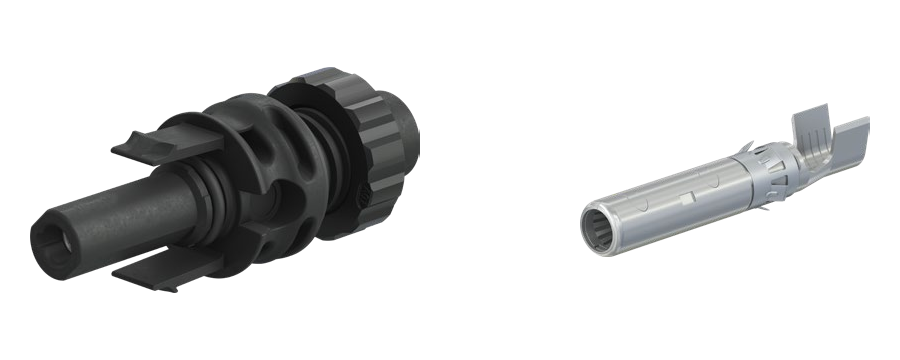

Original Stäubli connector for linking the DC side of inverters to battery energy storage systems (BESS). Its 45° twisted mating face prevents mismatching with MC4 and MC4-Evo 2 PV string connectors.

Technical specifications

• Manufacturer: Stäubli Electrical Connectors
• Product family: Original MC4-Evo stor
• Type: PV-ADB4-EVO ST/6
• Format: panel receptacle
• Conductor cross-section: 4 to 6 mm²
• AWG: 12; 10
• Crimp opening width: 5.8 mm
• Termination: Crimp
• Rated voltage: DC 1500 V
• Rated current: 42 A at 4 mm² / 47 A at 6 mm² (IEC); 35 A at 12 AWG / 50 A at 10 AWG (UL)
• Degree of protection, mated: IP65 / IP68 (1 m, 1 h)
• Ambient temperature: -40 °C ... +85 °C
• Contact material: Copper, tin plated
• Approvals: TÜV Rheinland, UL 6703 / cULus
• Stäubli order number: 32.0274P0001
• Individual part including insulating part: 1

Warning: Do not disconnect under load. MC4-Evo stor is mateable only with MC4-Evo stor.
