MC4 female recessed socket Stäubli PV-ADBP4-S2-UR/6

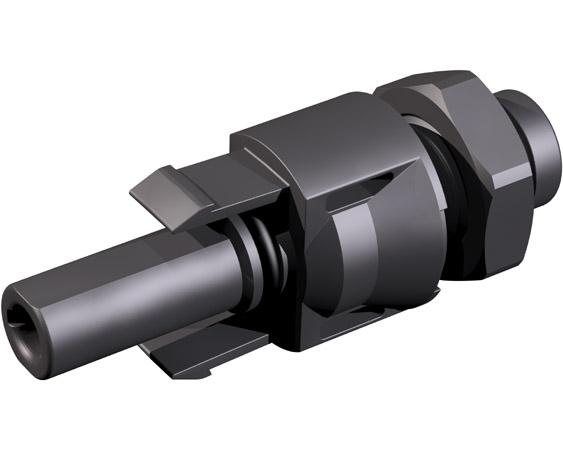

Original MC4 female panel receptacle (socket) from Stäubli Electrical Connectors, type PV-ADBP4-S2-UR/6. It provides the interface between an inverter or junction box and a photovoltaic string.

It mounts directly by screw thread or in a perforated plate. The plastic nut and enclosure sealing element are included.

Technical specifications

• Manufacturer: Stäubli Electrical Connectors
• Product family: Original MC4
• Type: PV-ADBP4-S2-UR/6 - MC4 female panel receptacle (socket)
• Stäubli order number: 32.0078P0100-UR
• Conductor cross-section: 4 or 6 mm² / 12 or 10 AWG
• Crimp opening width: 5.8 mm
• Termination method: crimping
• IEC rating: 1,100 V DC / 39 A at 4 mm²; 45 A at 6 mm² (IEC 62852)
• UL rating: 1,500 V DC / 35 A at 12 AWG; 50 A at 10 AWG (UL 6703)
• Contact resistance: less than 0.25 mΩ
• Ambient operating temperature: -40 °C to +85 °C
• Upper limiting temperature: +105 °C
• Degree of protection, mated: IP66 / IP68 (1 m, 1 h)
• Degree of protection, unmated: IP2X
• Contact system: MULTILAM
• Contact material: tin-plated copper
• Insulating material: PC/PA, flammability class UL94-V-0
• Maximum mating cycles: 100

Use only with a suitable mating connector from the MC4 product family and a suitable lead.
