MC4-Evo 2 Flexible Y Connector (PV-K/SPL-Y)

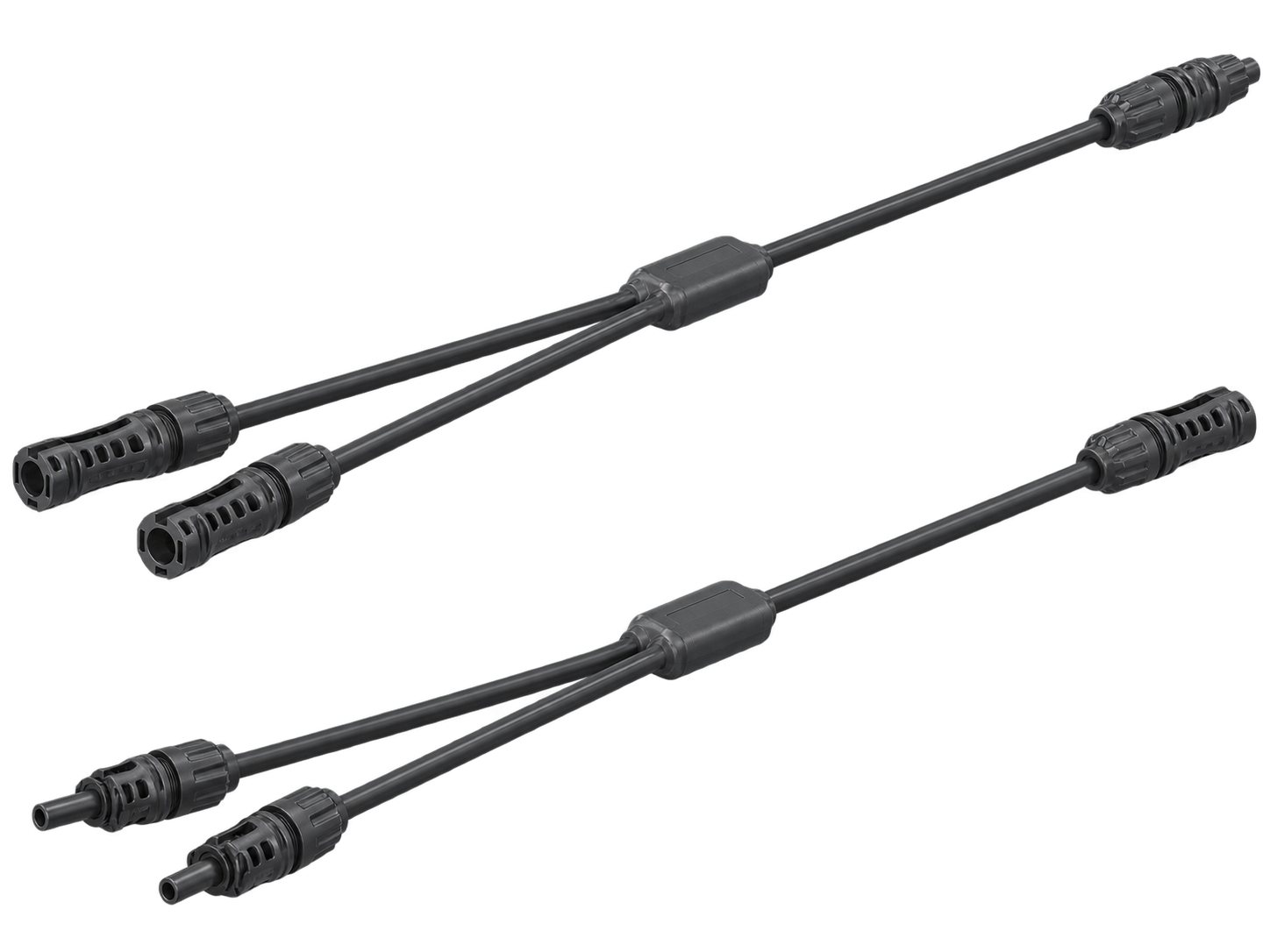

The genuine Stäubli MC4-Evo 2 flexible Y branch connector PV-K/SPL-Y connects two photovoltaic leads to one common lead. Its robust, pre-assembled design provides a quick and permanently reliable connection in PV DC circuits, with low power loss and heat generation.

Within the Stäubli product families, MC4-Evo 2 is mating-compatible with suitable genuine Original MC4 connectors. This compatibility applies only to correctly matched genuine Stäubli products; cross-mating with connectors from other manufacturers is not permitted.

Technical characteristics

• Manufacturer: Stäubli Electrical Connectors
• Product family: MC4-Evo 2
• Version: pre-assembled flexible Y branch connector
• Rated voltage: 1,500 V DC
• Test voltage: 8 kV
• Protection class: II
• Overvoltage category / pollution degree: CAT III / 3
• Cable cross-section: 6 mm²
• Ambient temperature: -40 °C to +85 °C
• Transport and storage temperature: -30 °C to +60 °C
• Relative humidity during transport and storage: below 70%
• Degree of protection, mated: IP65 / IP68
• Degree of protection, unmated: IP2X
• Contact material: copper, tin plated
• Insulation materials: PA, EVA and XLPE
• Maximum contact resistance: below 0.5 m?
• Certification: TÜV Rheinland according to 2 PfG 1913, certificate R 60164319

Available configurations

• 32.0333 – PV-K/SPL-Y-8-15/15-15EPP/ES-0050: 2 × plugs ? 1 × socket
• 32.0334 – PV-K/SPL-Y-8-15/15-15ESS/EP-0050: 2 × sockets ? 1 × plug

Important: use only suitable genuine Stäubli connectors and never mate or disconnect the connection under load. Installation must be carried out by a qualified person.
